Wedge Wire Wrapped Flat Panel Johnson Screen Mesh for Filtration in Petrochemical Industry

Product Description:

Wedge wire screen, also known as Johnson screen mesh, is a type of wire mesh structure used for sieving and filtering. It is widely used in various industries for screening, dehydration, and desliming operations due to its high strength, stiffness, and carrying capacity.

The profile wire of wedge wire screen gives it various names, such as Vee wire screen mesh, triangular wire screen mesh, or trapezoidal wire screen mesh. It is available in different shapes and forms, such as wedge wire tubes/pipes, nozzles, screens plates/pieces, and cylinders.

Wedge wire screen is primarily made of stainless steel wire (SS205B, 304, 316, etc.) or low carbon galvanized wire (LCG), mild steel wire, and iron wire.

It can be shaped as follows:

• Wedge Wire Tube/Pipe, which includes wire-wrapped stainless steel screen pipes, water & oil well screens, changeable filter elements, spiral screen pipes, and more.
• Wedge Wire Nozzle, which includes water filter nozzles, Johnson wire screen nozzles, and stainless steel strainer nozzles.
• Wedge Wire Screen Plate/Piece/Flat Panel, which includes dewatering screen panels, Johnson screen plates, v wire flat panels, sieve bends for coal, and more.
• Wedge Wire Screen Cylinder, which includes rotary drum screens, DSM screens, and wedge wire filter baskets.

Wedge wire screen is fully welded, ensuring its durability and strength for various applications.

Wedge wire screens have a wide range of applications in industries like water well, oil, mining, coal, chemicals, fertilizers, and more. They are useful for sewing, oil filtering, wire netting in the salt industry, and other filtration processes. They are also commonly used in environmental protection, sewage treatment, and food filtering.

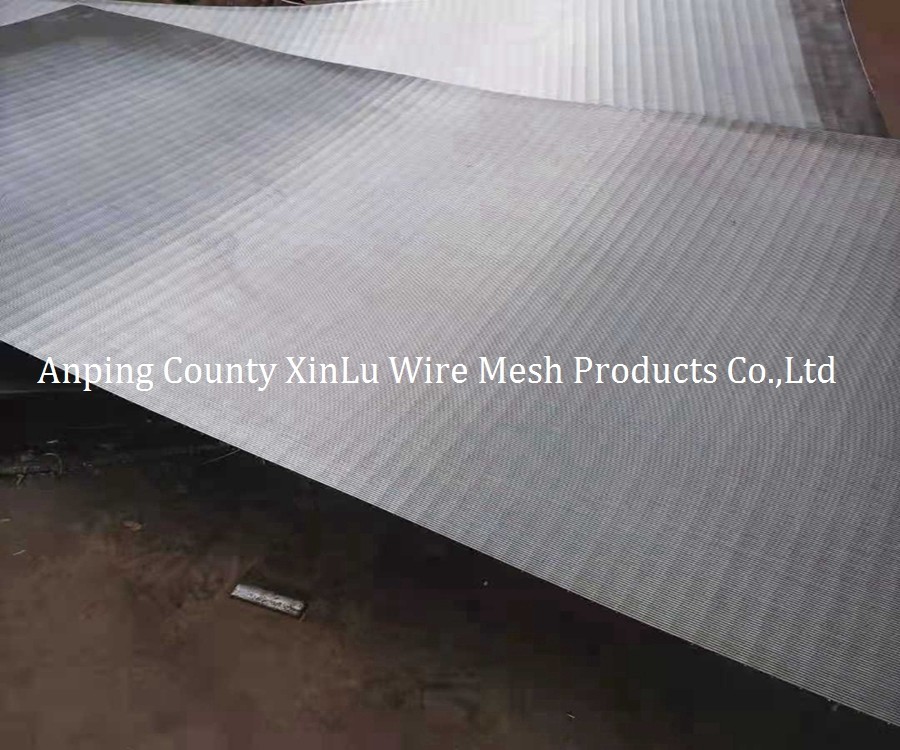

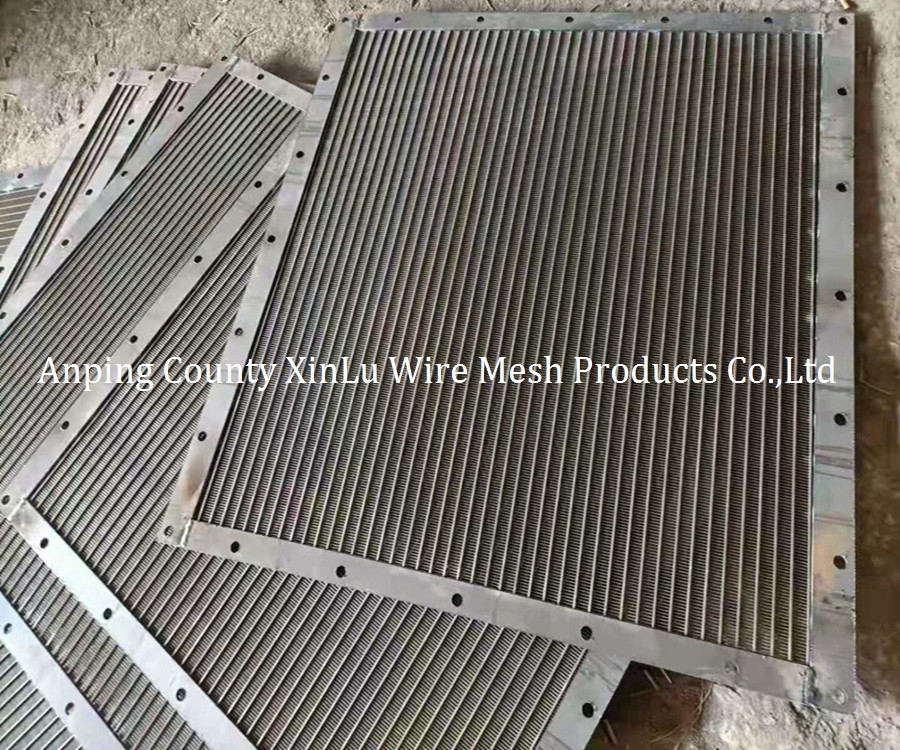

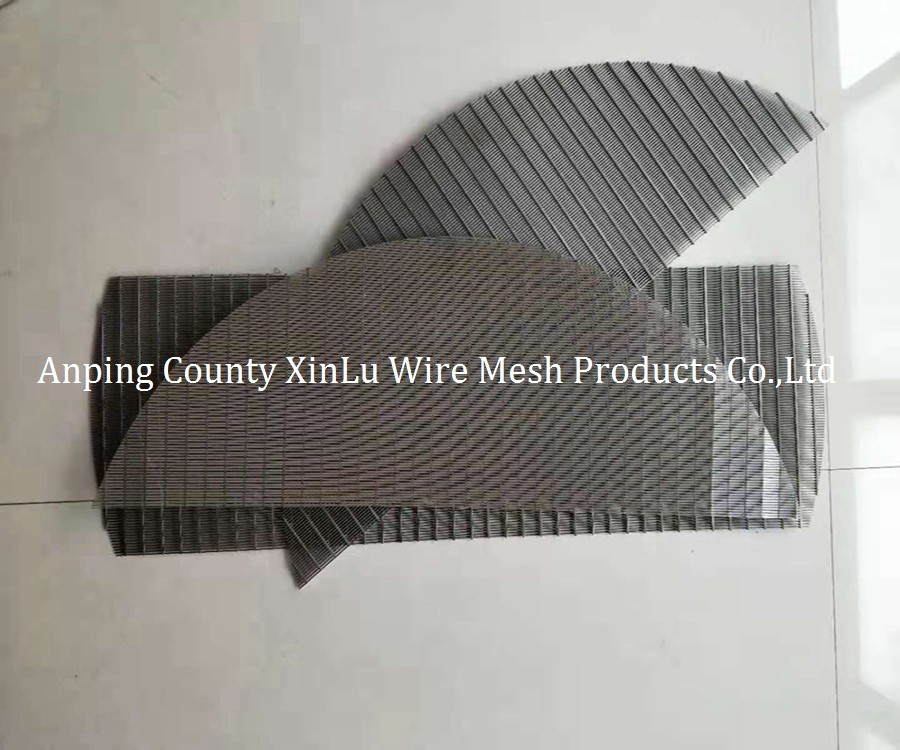

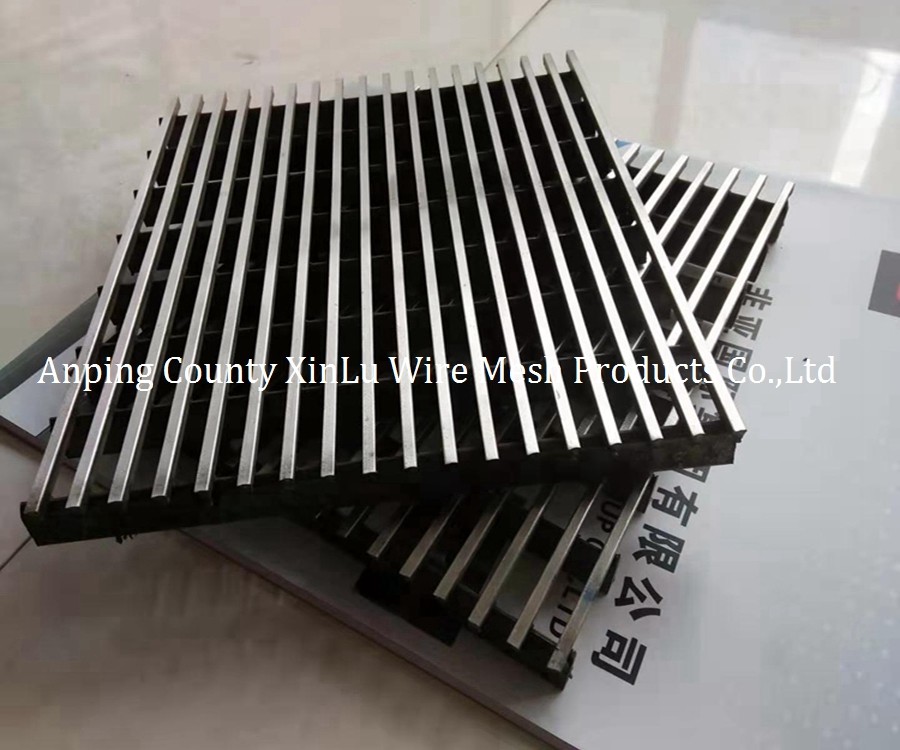

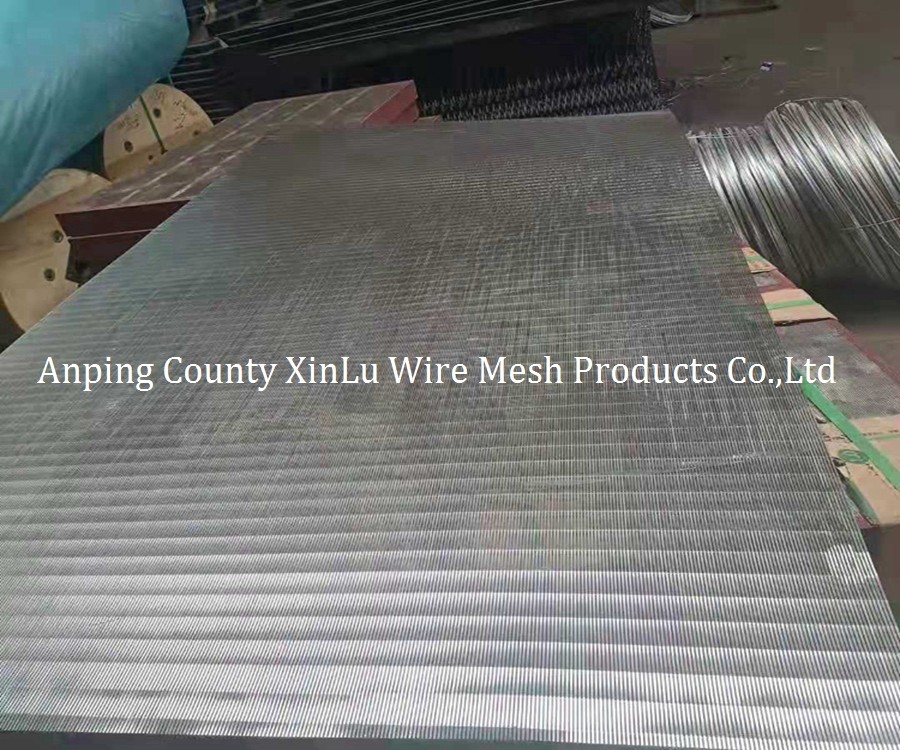

Wedge wire screen panels, also known as wedge wire flat screens, are rectangular wedge wire materials used for filtration. Wedge wire screen panels are manufactured using equally spaced wedge wires and support rods, which as surface profiles are welded onto the support profiles at each intersection.

Therefore, the shape and characteristics of wedge wire screen panels facilitate the accurate completion of the filtration process by vibration or liquid flow and are suitable for the screening of solids and the filtration of liquids. Smooth surface of the wedge wire screen panels and small slot sizes guarantee precision efficiency. Wedge screen panels support customization in conjunction with usage scenarios, choosing the right slot spacing and support bars for effective filtration.

Features:

Choose wedge wire screen panels to provide durable, reliable support for your machinery and equipment.

• Effective filtration
• Stable filtration accuracy
• Welded and robust construction
• Suitable and customizable design
• High durability, and less maintenance
• Corrosion resistance

Technical Parameters:

Applications:

Customization:

Packing and Shipping:

Our Johnson Screen Mesh is carefully packaged to ensure safe and damage-free delivery to our customers. Each mesh is wrapped in a protective material and then placed in a sturdy cardboard box. We also offer custom packaging options to meet specific customer needs.

For shipping, we work with reliable and efficient courier companies to ensure timely delivery of our products. We offer both air and sea freight options to cater to international orders.

Upon shipment, we provide our customers with a tracking number to monitor the delivery status of their order. Our team also maintains constant communication with our customers to provide any necessary updates on their shipment.
