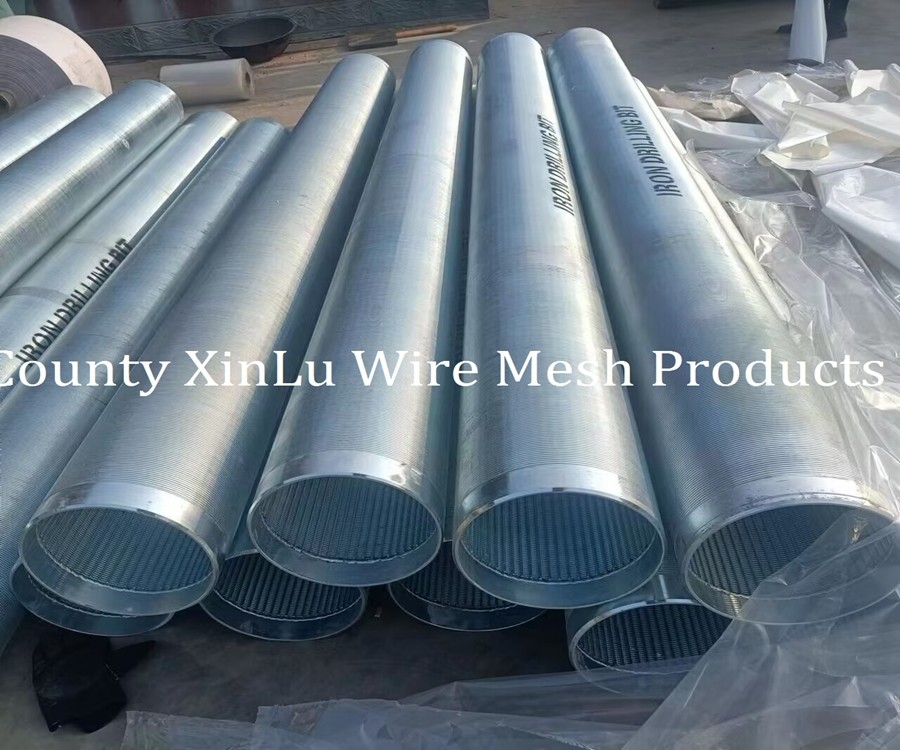

    V Shape Wedge Wire Wrapped Johnson Continuous Slot Well Screen Pipe with Diameter 10-3/4" Nozzle Diameter

    Ask Lasest Price
    Brand Name : Xinlu
    Model Number : Customized 10-3/4"
    Certification : CO, FORM E, FORM F, SGS
    Delivery Time : 5-20days according to the order quantity
    Payment Terms : T/T, cash, or others
    Price : USD50-500/pcs
    Supply Ability : 3000pcs/month
    • Product Details
    • Company Profile

    V Shape Wedge Wire Wrapped Johnson Continuous Slot Well Screen Pipe with Diameter 10-3/4" Nozzle Diameter


    V Shape Wedge Wire Wrapped Johnson Continuous Slot Well Screen Pipe with Diameter 10-3/4" Nozzle Diameter

    Product Description:

    We offer high-quality large-diameter water well screens, constructed with smooth wedge wire and robust support rods welded together, using corrosion-resistant metal materials to ensure durability and longevity. Precise specifications ensure that our water well screens function effectively in underground aquifers, preventing clogging, minimizing extraction resistance and energy consumption, and efficiently lifting fluids from lower layers.


    Our water well screens come with customizable screen sizes. Clients can adjust according to their specific needs to meet the requirements of various geological conditions and well depths.

    Technical Parameters:

    Technical Information
    • Materials: SS 304, SS 304L, SS 316, SS 316L, SS 321, Duplex, Hastelloy, etc.
    • Tube Length:up to 6 m
    • Tube Diameter:89 - 1200 mm
    • Profile Wire (Width × Height): 2.3 mm × 3.5 mm, 2.5mm x 4.0mm, 3.0 mm ×4.6mm, 3.2 mm × 6.0 mm, 3.0 mm × 5.0 mm
    • Support Rod:2.3 x 3.5mm,2.5 x 4.0mm, 3.0 mm × 4.6 mm, 3.5 mm × 5.0 mm, 3.0mm × 6.0mm
      • Round (mm): φ2.5 - φ5.5 mm
    • Slot Size: 0.1 - 3.0 mm

    Common Specifications of Stainless Steel Wedge Wire Water Well Screens

    Size

    (inch)

    O.D.

    (mm)

    Slot Size

    (mm)

    Length

    (m)

    Collapse Strength

    (Bar)

    Tensile Weight

    (ton)

    Profile Wire

    (Width × Height)

    (mm)

    Support Rods

    (mm)

    3-1/288.91.02.9>2210.22.3 × 3.53.8 mm / 22
    4-1/2114.31.02.9>2811.52.3 × 3.53.8 mm / 22
    6-5/8168.30.755.8>4012.82.3 × 3.53.8 mm / 32
    6-5/8168.31.05.8>3312.82.3 × 3.53.8 mm / 32
    6-5/8168.30.635.8>83453.2 × 6.06.0 mm*32
    8-5/8219.11.05.8>3421.92.3 × 3.53.8 mm / 48
    8-5/8219.11.05.8>5038.23.0 × 5.04.0 mm / 48
    8-5/8219.11.05.8>60463.2 × 6.05.0 mm / 48
    10-3/4273.10.755.8>5032.92.3 × 3.54.9 mm / 55
    10-3/4273.11.05.8>6039.53.0 × 5.04.9 mm / 55
    10-3/4273.11.05.8>100483.2 × 6.05.0 mm / 55
    12-3/4323.91.05.8>12037.23.0 × 5.04.0 mm / 50
    14355.61.02.9>8037.83.0 × 5.04.0 mm / 59

    Applications:

    Water well screens are widely used in water treatment, environmental protection, seawater conversion, the petroleum industry, and other scenarios.

    • Oil and gas upstream well screen
    • Deep vertical well
    • Supply well
    • Driven/jetted point wells
    • Drilled well
    • High flow municipal wells
    • Domestic water wells for residences and farms

    Features:

    Water well screens ensure clean water sources and extend the life of equipment.

    • Inward opening slots (FOTI) prevent sand from getting lodged in the screen.
    • Minimal pressure drop, stable flow rate
    • High efficiency, ensuring consistent pumping and long oil well life
    • Continuous slot wedge wire provides a greater open area than perforated metal pipes or slotted pipes used in water well applications
    • Sturdy longitudinal support rods offer excellent pressure resistance

    Packing and Shipping:

    Packaging and Shipping

    Johnson screen mesh is packaged in wooden boxes, which are suitable for long-distance transportation. The mesh is carefully wrapped with plastic film to prevent any damage during shipping. Each box is labeled with the product name, size, and quantity for easy identification.


    For small orders, we use express delivery services such as DHL, FedEx, or UPS. For larger orders, we arrange for sea or air freight shipping, depending on the customer's preference and urgency. Our experienced team ensures that the products are packed securely and delivered to the destination on time.


    Customers can also specify their preferred shipping method and provide their shipping account for us to use. We are committed to providing flexible and efficient shipping options to meet our customers' needs.
