Brand Name : | Xinlu |
Model Number : | Customized |
Certification : | CO, FORM E, FORM F, SGS |
Delivery Time : | 5-20days according to the order quantity |
Payment Terms : | T/T, cash, or others |
Price : | USD50-200/sqm2 |
Supply Ability : | 10000sqm2/month |
Specification:
Triangle wire size:
Triangle wire | Width | 1.0mm | 1.2mm | 1.5mm | 2.0mm | 2.2mm | 3.0mm |
height | 2.0mm | 2.0mm | 2.0mm | 3.0mm | 3.5mm | 4.6mm | |
Slot | 0.02 mm-100 mm |
Support rod size:
Support rod | Width | 2.0mm | 3.0mm | 3.0mm | 3.0mm | 4.0mm | 5.0mm |
height | 3.0mm | 4.6mm | 5.0mm | 6.0mm | 7.0mm | 8.0mm | |
Distance | 20mm-30mm |

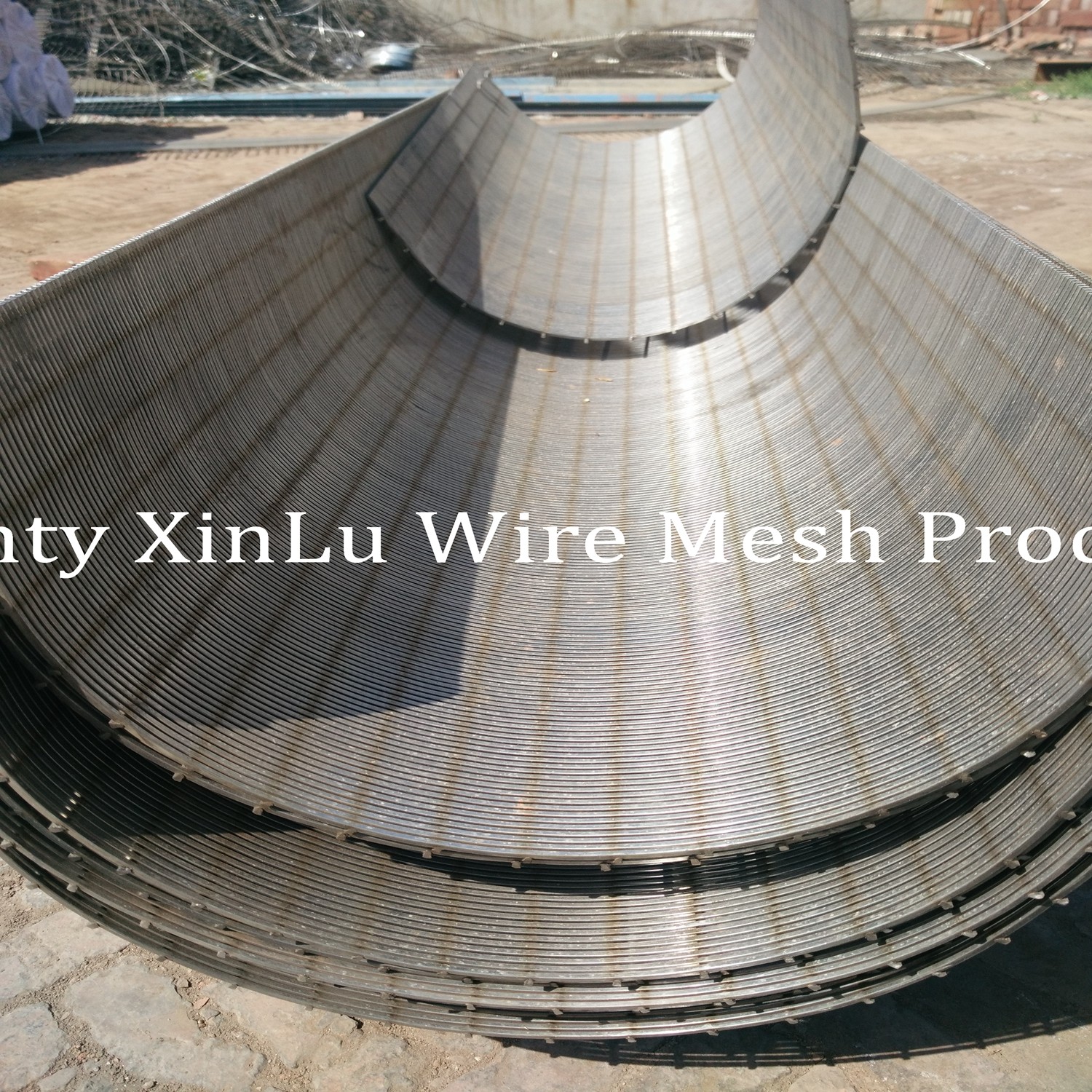

Wedge wire screen panels offer robust filtration and support across industries such as agriculture, fisheries, water treatment, and construction. These panels excel in water treatment processes and applications involving natural water bodies, efficiently removing particulate matter.
Brand Name: Xinlu
Model Number: Customized
Place of Origin: Anping County Xinlu Wire Mesh Products Co., Ltd
Certification: CO, FORM E, FORM F, SGS
Minimum Order Quantity: 10pcs
Packaging Details: inside transparent plastic bag, outside woven
bag, or bubble bag, or wooden box, or pallet
Delivery Time: 5-20days according to the order quantity
Payment Terms: T/T, cash, or others
Corrosion Resistance: Excellent Corrosion Resistance
Material: Stainless steel 304/316L/321/310S, Duplex steel
2205/2507, Hastelloy, Titanium alloy, etc.
Surface profile type: Triangular (V-shaped, wedge) wires.
Support profile type: Triangular (V-shaped, wedge), round rod, flat
bar, water-drop, and square wire.
Slot size: 0.02 mm – 10 mm.
Pitch: 10 mm – 100 mm.
Surface profile wire length: Up to 3,000 mm.
Support profile wire length: Up to 4,000 mm.
![]() |
