V Wire Wrapped Water Well Screens Or Johnson Wedge Wire Screens For Pump Drilling

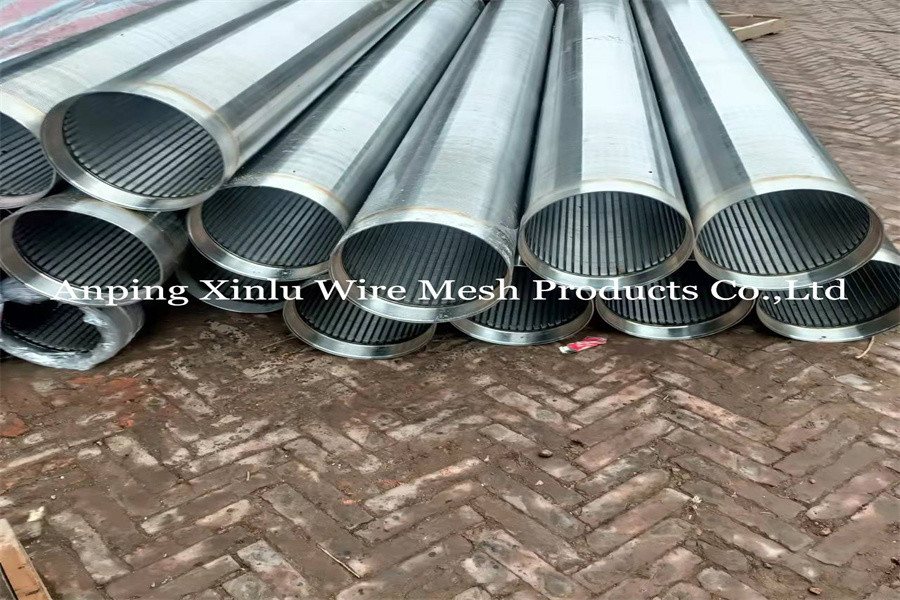

XinLu water well screen are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities , while at the same time keeps the majority of sand and gravel out of the well.

Lengths up to 6 meters.
Diameter ranging from 25 mm to 800 mm
End Connection :Plain beveled ends for butt welding or threaded.
Specifications are according to customers& actual requests.

Specification (Profile wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)
Length; Lengths up to 6 meters.
Diameter: ranging from 25mm to 800mm.
End connection : Plain beveled ends for butt welding or threaded

Anping County Xinlu Wire Mesh Products Co., Ltd. is a leading manufacturer of wedge wire mesh products located in Anping County, Hebei Province, China.

We specialize in producing a wide range of products including stainless steel filter screen, Johnson wire screen, Johnson screen pipe, Johnson screen tube, water well screen tube, dewatering screen pipe, oil well screen, sand control well screen, filter Johnson screen, continuous slot screen, wire wrapped screen pipe, v wire slot tube, spiral screen pipe, wedge wire strainer pipe, wound water well screen, stainless steel filter candle, changeable filter element, pump filter, motor filter, profile wire screens, etc

Product Tags: Supply v wire wrapped Water Well Screens or wedge wire screens well casing and screen tube 8 5/8 inch API 5CT steel casing pipe and wedge wire screen tube

Anping County Xinlu Wire Mesh Products Co., Ltd is situated in Anping county, renowned as "The hometown of wire mesh in China". Established in 1997, our company boasts a rich history and a large-scale production capacity. We are proud to be certified by the ISO9000 quality system authentication.

At Xinlu Wire Mesh, we specialize in the production of a wide range of wire mesh products. Our offerings include horsetail hair, V-shaped wire welded stainless steel screens, low carbon steel screens, Johnson Specialty screens, water well screen, well screen pipe, wire wrapped screen pipes, welded wedge wire screens, johnson wire screen tube, johnson wire screen pipe, johnson wire screen panel, johnson wire screen plate, johnson wire cylinder screen, johnson wire filter nozzle, reverse rolled screen tubes, weedge wire screen cylinders, v wire slot screens, sand control well screens, water filter nozzle, Johnson wire screen nozzles, water and gas strainers, weedge wire filter elements, Sieve bend screen, wedge wire sieve bends, arc screen plates, wire wrapped screen panels, flat wedge wire panels with frames, vibrating sieve screens, wire wrapped liners, chain link fences, fence netting, welded wire meshes, stainless steel wire meshes, galvanized wires, galvanized wire meshes, crimped wire meshes, Gabion meshes, welded Gabion boxes, PVC coated Gabions, wire mesh panels, stainless steel wire meshes, steel wires, water and gas filter meshes, filter tubes, and other wire mesh products. Additionally, we also offer mesh belt conveyors, window screening series, and metal jewelry products.

Our products find applications in various industries such as drilling wells and pumps, ore selection, petroleum, chemical, electronics, transportation, plastics, food, architecture, traffic, musical instruments, safety, and more. Not only are our products highly sought after in China, but they are also well-received in African countries, the Middle East, and Southeast Asia.
