| Brand Name : | FY-XL |
| Model Number : | FY-XL-15 |
| Certification : | CCIC, ISO |
| Price : | 9.5$/spcs |
| Payment Terms : | T/T |
| Supply Ability : | 350pcs/day |
| Delivery Time : | 3days |

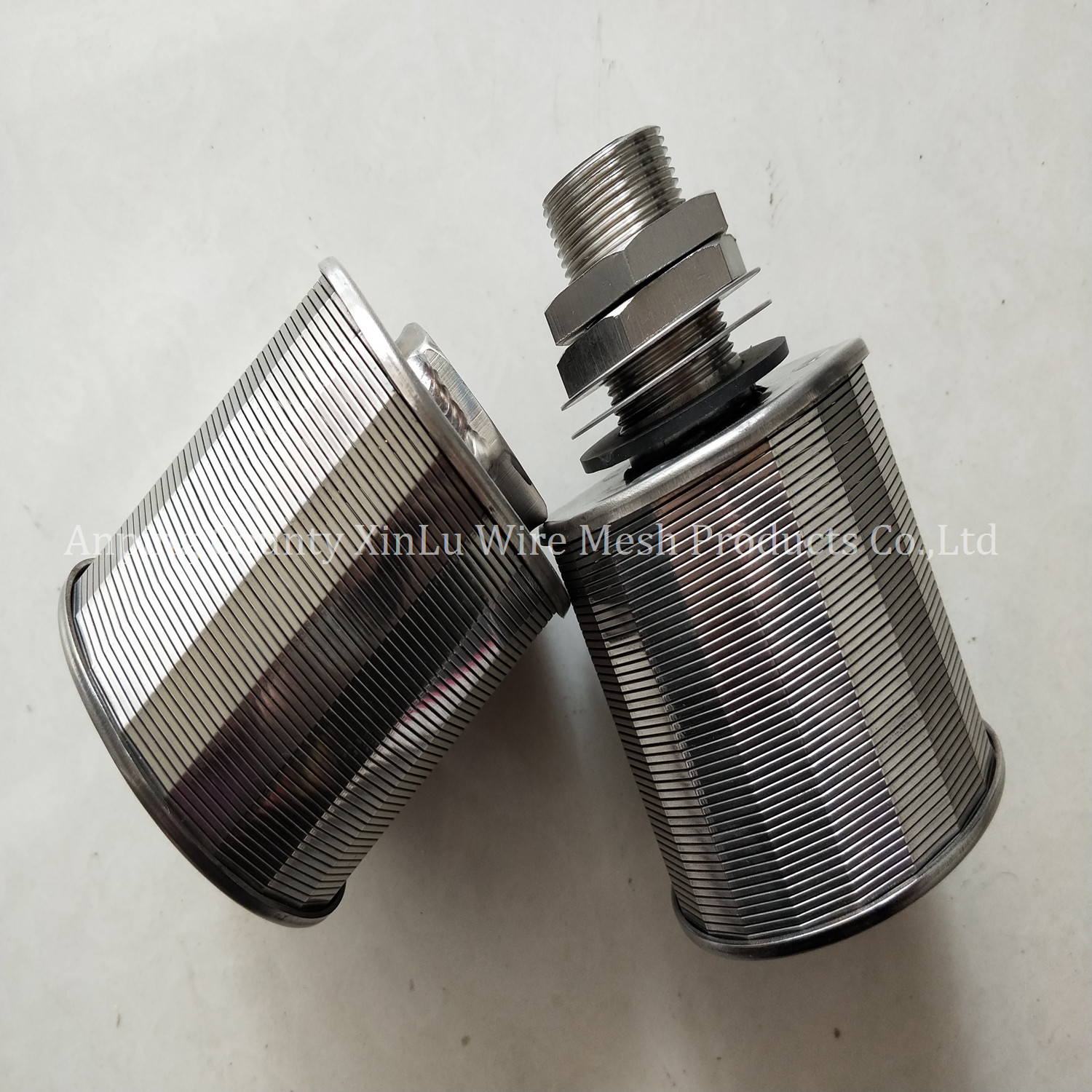

Water Filter Bottom Nozzle, Wedge Wire Strainer Top Nozzle, Stainless Steel Johnson Screen Nozzle
Feiya group branch factory-Xinlu Screen Nozzles are made of vee-wire wrapped around support rods in a helix pattern to form continuous slots. Rigid construction and evenly distributed slots make the screen nozzle ideal for use as collectors and distributors in material retention and flow rate control.
We Specialize in filtration components, and are able to produce wedge wire screen nozzles with a high open area and a large flow capacity. The wedge wire nozzles are widely used in water treatment, Chemical engineering, petrochemical industries, pharmaceuticals, biochemical industries, power plants, and ion exchange systems.
Below, we’ve listed several popular models for customers to choose from.
FY-XL-DT Quick Connect Screen Nozzle
| Model | Ton | Slot Opening Size | Dimensions | Flow area with 0.2mm slot opening (mm2) | |||
| D | L1 | L | M | ||||
| FY-XL-DT-45-A | 0.5 | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| FY-XL-DT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 | |
| FY-XL-DT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 | |
| FY-XL-DT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 | |
| FY-XL-DT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 | |
| FY-XL-DT-53-A | 1.0 | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| FY-XL-DT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 | |
| FY-XL-DT-53-C | 1.5 | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| FY-XL-DT-57-A | 2.0 | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| FY-XL-DT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 | |
| FY-XL-DT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 | |
| FY-XL-DT-70-A | 3.0 | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| FY-XL-DT-70-B | 5.0 | 0.2-0.5 | 70 | 55 | 115 | 32 | 810 |
FY-XL-PT Double Head Screen Nozzle
| Model | Slot Opening Size | Dimensions | Flow area with 0.2mm slot opening (mm2) | |||
| D | L1 | L | M | |||
| FY-XL-PT-45-A | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| FY-XL-PT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 |
| FY-XL-PT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 |
| FY-XL-PT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 |
| FY-XL-PT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 |
| FY-XL-PT-53-A | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| FY-XL-PT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 |
| FY-XL-PT-53-C | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| FY-XL-PT-57-A | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| FY-XL-PT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 |
| FY-XL-PT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 |
| FY-XL-PT-70-A | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| FY-XL-PT-70-B | 0.2-0.5 | 70 | 55 | 115 | 32 | 810 |
FY-XL-ST Big Head Screen Nozzle
| Model | Slot Opening Size | Dimensions | Flow area with 0.2mm slot opening (mm2) | |||
| D | H | L | M | |||
| FY-XL-ST-45-A | 0.2-0.5 | 45 | 30 | Available in customer design | 25 | 330 |
| FY-XL-ST-45-B | 0.2-0.5 | 45 | 35 | 25 | 330 | |
| FY-XL-ST-45-C | 0.2-0.5 | 45 | 40 | 25 | 400 | |
| FY-XL-ST-45-D | 0.2-0.5 | 45 | 45 | 25 | 450 | |
| FY-XL-ST-53-A | 0.2-0.5 | 53 | 30 | 30 | 450 | |
| FY-XL-ST-53-B | 0.2-0.5 | 53 | 35 | 25 | 400 | |
| FY-XL-ST-53-C | 0.2-0.5 | 53 | 40 | 30 | 500 | |
| FY-XL-ST-53-D | 0.2-0.5 | 53 | 45 | 30 | 550 | |
| FY-XL-ST-53-E | 0.2-0.5 | 53 | 45 | 32 | 630 | |
| FY-XL-ST-53-D | 0.2-0.5 | 53 | 50 | 30 | 680 | |
| FY-XL-ST-57-A | 0.2-0.5 | 57 | 35 | 32 | 530 | |
| FY-XL-ST-57-B | 0.2-0.5 | 57 | 40 | 32 | 605 | |
| FY-XL-ST-57-C | 0.2-0.5 | 57 | 50 | 32 | 750 | |
FY-XL-CB Long Neck Screen Nozzle
| Model | Slot Opening Size | Dimensions | Flow area with 0.2mm slot opening (mm2) | ||||
| D | H | L1 | L | M | |||
| FY-XL-CB-45-A | 0.2-0.5 | 45 | 30 | Available in customer design | 180 | 25 | 330 |
| FY-XL-CB-45-B | 0.2-0.5 | 45 | 40 | 190 | 25 | 450 | |
| FY-XL-CB-53-A | 0.2-0.5 | 53 | 40 | 190 | 30 | 500 | |
| FY-XL-CB-53-B | 0.2-0.5 | 53 | 50 | 200 | 30 | 630 | |
| FY-XL-CB-53-C | 0.2-0.5 | 53 | 40 | 235 | 32 | 500 | |
| FY-XL-CB-57-A | 0.2-0.5 | 57 | 40 | 190 | 32 | 605 | |
| FY-XL-CB-57-B | 0.2-0.5 | 57 | 50 | 200 | 32 | 750 | |
FY-XL-SS Double Flow Screen Nozzle
| Model | Slot Opening Size | Dimensions | Flow area with 0.2mm slot opening (mm2) | |||
| D | L1 | D1 | L | |||
| FY-XL-SS-82-A | 0.25/0.4 | 82 | 50 | 50 | 130 | 1072 |
| FY-XL-SS-82-B | 0.25/0.4 | 82 | 50 | 50 | 130 | 1072 |
| FY-XL-SS-53-A | 0.25/0.4 | 53 | 33 | 36 | 110 | 485 |
| FY-XL-SS-53-B | 0.25/0.4 | 53 | 33 | 35 | 110 | 485 |
Water cap making process
stamping
Lathe parts
attachment
One screw and two nuts
Anping County Xinlu Wire Mesh Products Co., Ltd. is a leading manufacturer of wedge wire mesh products located in Anping County, Hebei Province, China.
We specialize in producing a wide range of products including stainless steel filter nozzle, water filter nozzle, Johnson screen nozzle, water &gas strainer nozzle, filter bottom nozzle, double flow rate filter nozzle, long neck (pipe) screen nozzle, double head strainer nozzle, quickly install screen nozzle, header lateral, lateral arm pipe, stainless steel filter candles, etc
|
|
