Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd TURBO-SHEAR COANDA SCREENS

FEATURES AND ADVANTAGES
· No moving parts
· Simple and inexpensive to install
· No electricity required
· High capacity -- 1½ cfs per foot of weir length

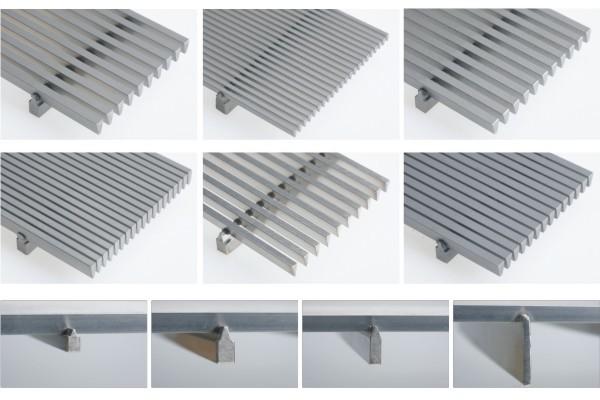

· Profile wire stainless steel
· Capable of removing solids as small as 0.5 mm

APPLICATIONS
· Hydroelectric turbine intakes, Silt Screening
· Irrigation Diversions
· Municipal and industrial diversions
· Wildlife refuges
· Fish Hatcheries
· Fish barriers
· Screening wherever fish protection and liquid/solid separation are required

The Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Turbo-shear Screen utilizes a combination of shear and Coanda Effect. As the water flows across each horizontal wire, a portion is sheared or "sliced" at each slot to be passed to the useful purpose of the diversion. Solids larger than the slot are flushed past the screen. The standard slot opening is 1.0 mm. Screens with larger or smaller openings can be manufactured on special order.

Liquid/solids separation is further enhanced by the Coanda Effect; that is , the phenomenon whereby fluids tend to follow a solid surface. A specially designed acceleration plate provides for both an even distribution of flow across the screen and an increase in velocity of the fluid for more effective liquid/solid separation.

Please contact us for more information.

Anping County Xinlu Wire Mesh Products Co., Ltd is situated in Anping county, renowned as "The hometown of wire mesh in China". Established in 1997, our company boasts a rich history and a large-scale production capacity. We are proud to be certified by the ISO9000 quality system authentication.

At Xinlu Wire Mesh, we specialize in the production of a wide range of wire mesh products. Our offerings include horsetail hair, V-shaped wire welded stainless steel screens, low carbon steel screens, Johnson Specialty screens, water well screen, well screen pipe, wire wrapped screen pipes, welded wedge wire screens, johnson wire screen tube, johnson wire screen pipe, johnson wire screen panel, johnson wire screen plate, johnson wire cylinder screen, johnson wire filter nozzle, reverse rolled screen tubes, weedge wire screen cylinders, v wire slot screens, sand control well screens, water filter nozzle, Johnson wire screen nozzles, water and gas strainers, weedge wire filter elements, Sieve bend screen, wedge wire sieve bends, arc screen plates, wire wrapped screen panels, flat wedge wire panels with frames, vibrating sieve screens, wire wrapped liners, chain link fences, fence netting, welded wire meshes, stainless steel wire meshes, galvanized wires, galvanized wire meshes, crimped wire meshes, Gabion meshes, welded Gabion boxes, PVC coated Gabions, wire mesh panels, stainless steel wire meshes, steel wires, water and gas filter meshes, filter tubes, and other wire mesh products. Additionally, we also offer mesh belt conveyors, window screening series, and metal jewelry products.

Our products find applications in various industries such as drilling wells and pumps, ore selection, petroleum, chemical, electronics, transportation, plastics, food, architecture, traffic, musical instruments, safety, and more. Not only are our products highly sought after in China, but they are also well-received in African countries, the Middle East, and Southeast Asia.
