0.02mm/0.05mm/1mm Wedge Wire Screens|Johnson Screen|Vee Wire Filter Screen

Slotted wedge wire screens are made of longitudinal profile wires and cross bars. They are supplied ready to be build in:
in wear and corrosion resistant alloyed steel grades
with or without reinforcement
in a welded or looped execution

They are used for dewatering, drying, deslurrying and separation:
on screening machines
in sieve bend installations and sieve moulds
as baskets & segments for centrifuges
as plain filter segments for extraction & diffusion bottoms
as kiln floors and well pipes etc.

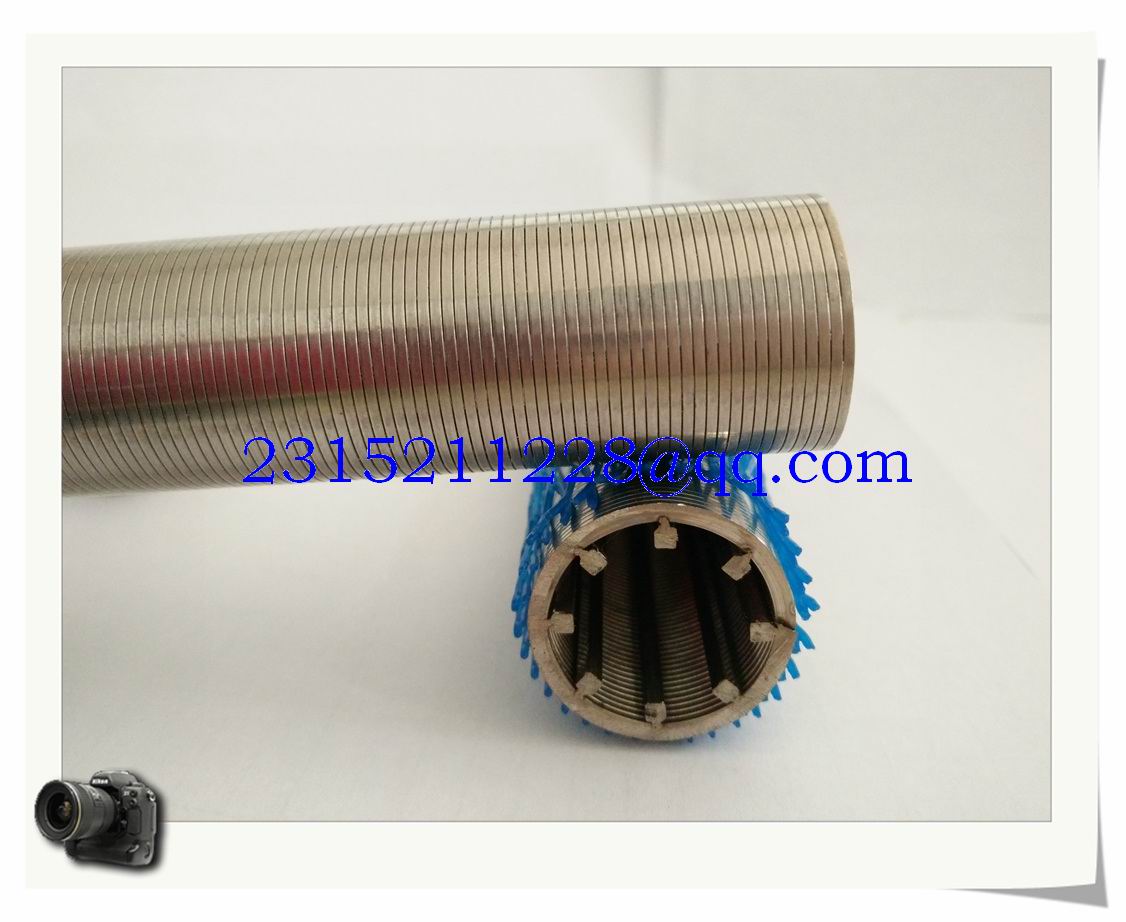

Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.

Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),

2.Diameter: Normal size is 89mm 114mm, 168mm 219mm 245mm 273mm 325mm 406mm 426mm and etc.
More size can be made according to customer's requirment

3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.

4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)

Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating

Data reference table:

Any inquiry please don't hesitate to contact us !(whatsApp+86-13315867171)

Hope we can work together soon.
